Blocks Are Dead. Long Live Blobs.

Thanks to Kev, Francesco, soispoke, Anders and Jihoon for feedback and review.

TL;DR: Block in Blobs (BiB) takes transactions in RLP format, and encodes it as a blob (similar to type-3-txs). This is beneficial in a zkEVM world as not everyone will need to download every transaction anymore - reducing bandwidth requirements.

With zkEVM coming, validators will no longer need to execute transactions to verify blocks: a succinct proof will be enough. But this changes how data availability works.

Today, DA is enforced implicitly: you can’t verify a block without downloading and executing its transactions. Under zkEVM, validators verify proofs, not transactions directly. A builder could publish a valid block and proof while withholding the underlying transaction data. The block would pass consensus, but no one could re-execute it, index it, or reliably build on top of it.

Block-in-Blobs (BiB) addresses this by encoding transaction data into blobs, making DA a consensus-level requirement. Validators can then sample rather than download: same guarantees, less bandwidth, more scale.

In the following, I want to walk through the design space and things that helped me wrap my head around it.

background: blocks, payloads, and transactions

To understand BiB, we first need to untangle some terminology. Ethereum is split into two layers: the Consensus Layer (CL) and the Execution Layer (EL). This separation is intentional and powerful, but it introduces conceptual friction, especially around what exactly a block or payload is.

blocks vs. execution payloads

From the consensus layer’s point of view, the canonical object is the beacon block. A beacon block may include an ExecutionPayload, but it is not itself an execution block.

The ExecutionPayload is the object exchanged between CL and EL via the Engine API:

  • During block building, the EL constructs an ExecutionPayload and hands it to the CL.
  • During validation and attestation, the CL hands the payload back to the EL for execution.

The ExecutionPayload is not the EL’s native block format. Instead, it contains exactly the information the EL needs to reconstruct and validate an execution block internally.

The ExecutionPayload size grows with the block gas limit, but also depends on the calldata pricing and other factors. With increasing block gas limits, block sizes increase too, and so do bandwidth requirements. Fortunately, there’re two solution.
First, following the example of Flashblocks, we could split the payload into constant-size pieces, enabling them to be processed independently - effectively hiding latency.
Second, we could think of ways that allow validators to not download all transaction while still having certainty about them being published - Block in Blobs (BiB). While this post described the first solution, I want to focus on the second one in the following.

BiB proposes to encode blocks (potentially also the Block-level Access List (BAL)) into constant-size blobs. Similar to type-3-tx blobs, validators will then not need to download the full ExecutionPayload anymore but instead only the columns they have custody over. This unlocks scaling benefits because not every validator will need to download everything, reducing bandwidth requirements without weakening the security/availability guarantees.

So when people say “put blocks into blobs”, what they really mean is putting the CL’s execution payload into blobs… and even that isn’t the full truth.

what BiB actually encodes

Despite the name, BiB doesn’t put entire blocks, or even entire execution payloads, into blobs. In its simplest form, the protocol only needs to ensure transaction data availability.

Transactions inside the ExecutionPayload are already in the right shape:

  • Each transaction is already RLP-encoded bytes.
  • The payload contains a list of these bytes.

BiB takes the serialized RLP-encoded transactions, chunkifys them and packs them into blobs.

Everything else execution-related (EL header fields, execution output roots, etc.) would either move into the beacon block or come in a separate sidecar with a commitment in beacon block. BiB guarantees that the information needed for re-execution is available.

Block-level Access Lists (BALs) may share the same destiny as transaction. Since the users of BALs may be different from the users of transactions, it might make sense to put BALs into blobs too but separate from the transactions.

how transactions become blobs

With the “what” and “why” established, let’s look at the “how.” Blob encoding follows the EIP-4844 model:

  1. Serialize transaction bytes
    • Take payload.transactions (each already RLP-encoded)
    • Canonically encode the list (typically RLP of the list of tx-bytes)
  2. Pack bytes into blobs
    • Split the byte stream into 31-byte chunks
    • Each chunk becomes the first 31 bytes of a 32-byte field element
    • The first byte is set to 0x00 so the element stays under the BLS modulus
    • 4096 field elements form one blob
  3. Commit
    • Interpret the blob as a polynomial
    • Compute a KZG commitment
    • The beacon block references these commitments
  4. Sidecar
    • Similar to type-3-tx sidecars, or the ExecutionPayloadEnvelope as of ePBS, the payload blob travels the network in a sidecar
    • In addition to the payload blob, each sidecar comes with an index, kzg proofs, the slot number and the beacon block root.
  5. Custody
    • Initially, validators may store all payload blobs without leveraging DAS
    • Validators can download the payload blobs (which is almost the equivalent to downloading the ExectutionPayloadEnvelope under ePBS) and locally construct the ExecutionPayload from it.
    • At a later stage, partial custody and DA sampling can be introduced, leveraging the newly introduced mechanism for scaling (not requiring everyone to download all transactions)
    • The same applies to erasure encoding and cell-level messaging

The key insight: under zkEVMs validators don’t need the transactions to verify commitments. They only need commitments for consensus, while DA sampling ensures the blob contents are available on the network.

what the zkEVM proof must bind

For BiB to work for zk-attesters who don’t download all payload blobs, the proof must guarantee three things:

  1. Execution correctness
    The state transition from pre_state to post_state is valid.
  2. Correct transaction-to-blob encoding
    The exact canonical transaction bytes were packed into the blobs.
  3. Commitment binding
    The blob commitments referenced by the beacon block correspond to those payload blobs.

Together, these requirements transform data availability from “implicit via re-execution” into “explicit via blob commitments + DAS.”

Note: BiB and zkEVMs/mandatory-proofs are orthogonal:
BiB can be rolled out iteratively, starting with putting transactions (and potentially the BAL) into blobs without yet introducing mandatory zk-proofs for execution and blob-encoding. Furthermore, the partial data custody doesn’t need to be done right from the beginning. BiB, in its minimal form, simply takes the RLP encoded transactions, and encodes them into blobs. From the EL perspective nothing changes - upon receipt, the CL constructs the ExecutionPayload from the received blobs and builds the EL block from it - just like today. At this point, those blobs can already be used by zk-attesters consuming optional proofs, which are slated to be rolled out pre-mandatory proofs for a limited set of attesters.

where the rest of the payload goes

BiB doesn’t move the entire execution payload into blobs: only the transaction data.

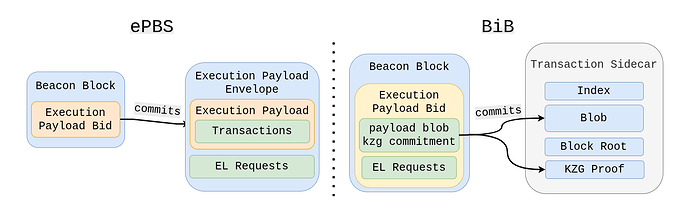

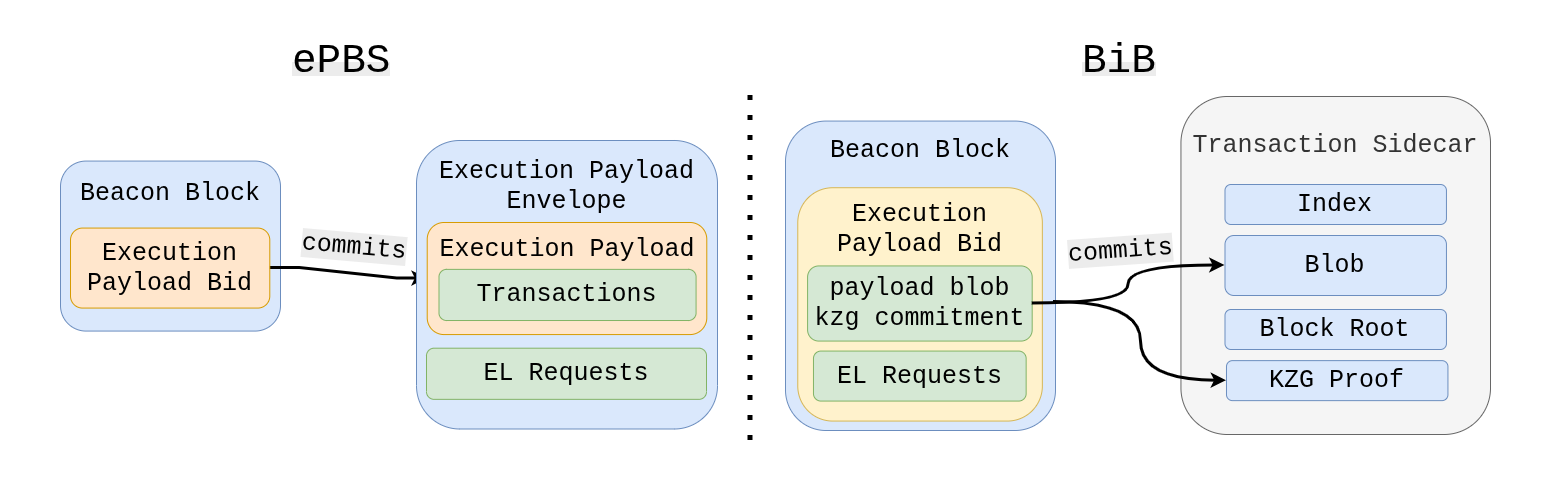

Building on top of ePBS, the beacon block carries the execution header (or commitments / metadata) while the payload is made available separately via blobs.

Blobs carry the heavy bytes; bids carry the compact commitments.

bib
bib1551×480 63.3 KB

This design would complicate moving to slot auctions in the future. If we want to keep that option, we may still need ePBS’s ExecutionPayloadEnvelope alongside the sidecars or move EL requests into the payload blobs too.

how many blobs will payloads need?

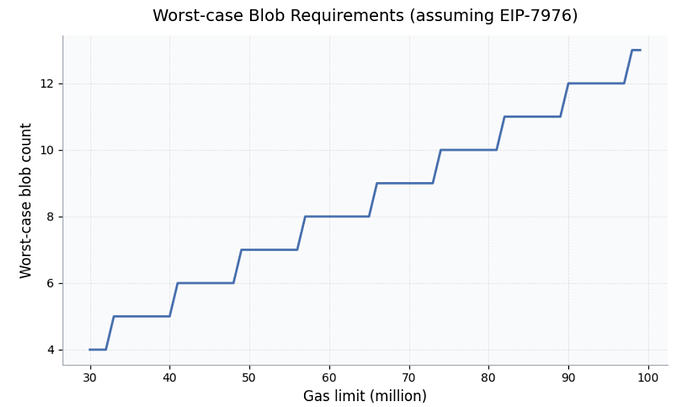

Finally, let’s ground this in concrete numbers. Today’s execution payloads at a 60M gas limit average ~150 KiB (=~1-2 payload blobs), with a maximum size of ~5.7 MiB (depending on EL data pricing).

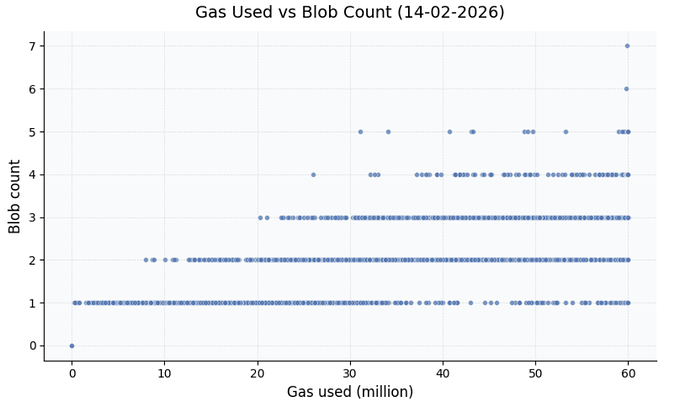

The maximum number of payload blobs depends on both the gas limit and calldata pricing. Looking at recent blocks, a 60M gas limit occasionally produces 3-4 blob blocks:

image987×583 82.6 KB

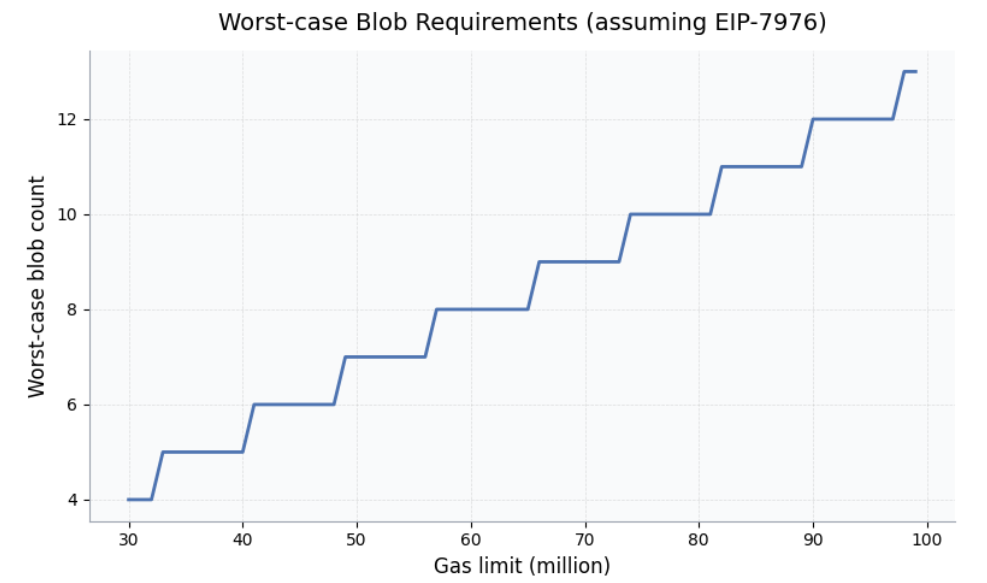

In the worst case, assuming EIP-7976 (64 gas per byte for calldata-heavy transactions), we’d need ~7 blobs filled with calldata. With today’s calldata pricing (10/40 gas), that number jumps to 45 blobs, and generalizing it further, we get the following formula to determine the max blob count needed:

N= \left\lceil \frac{L}{c \cdot B} \right\rceil

where
L = block gas limit
c = calldata gas cost (gas/byte)
B = blob size (bytes)

image987×583 57.8 KB

appendix - unified data gas

BiB answers how to make transaction data available via blobs. But it surfaces a more fundamental question: how do we account for all this data?

Today, Ethereum has two separate resource dimensions for data:

  1. Execution gas: used by calldata (4/16 gas per zero/non-zero byte, or 10/40 at the EIP-7623 floor)
  2. Blob gas: used by type-3 transaction blobs (131,072 blob gas per blob)

These dimensions have independent limits. The block gas limit caps execution gas; MAX_BLOB_GAS_PER_BLOCK caps blob gas. A block can max out both simultaneously.

the additive worst case

Under BiB, calldata becomes blobs. But type-3 transactions also carry blobs. Without changes to resource accounting, we face an additive worst case:

N_{worst} = N_{calldata} + N_{type3} = \left\lceil \frac{L}{c \cdot B} \right\rceil + \frac{\text{MAX_BLOB_GAS}}{\text{GAS_PER_BLOB}}

With a 60M gas limit, EIP-7976 pricing (64 gas/byte), and 21 type-3 blobs:

N_{worst} = 7 + 21 = 28 \text{ blobs}

With today’s calldata pricing (10/40 gas), this equals 11 + 21 = 32 blobs, all non-compressible.

unified data gas: one dimension for all DA

The elegant solution is to collapse data from calldata and blob data into a single data dimension. The core principle:

All data that needs to be made available should count against the same limit.

The fragmentation exists only at the EL, where we have:

# Current: TWO separate checks
assert tx.gas <= block_gas_limit - block.gas_used         # execution gas
assert tx.blob_gas <= MAX_BLOB_GAS - block.blob_gas_used  # blob gas

With BiB, both transactions and type-3 blobs become the same thing: blobs, and the accounting should reflect this.

design: unified data gas

Replace the two-dimension model with a single data bytes dimension:

BYTES_PER_BLOB = 131_072                      # 128 KiB
MAX_DATA_BYTES = max_blobs * BYTES_PER_BLOB   # e.g., 28 blobs ≈ 3.5 MiB

def data_bytes(tx):
    # Full encoded tx goes into payload blob
    tx_bytes = len(rlp_encode(tx))

    # Type-3 blob sidecars add more DA
    if tx.blob_versioned_hashes:
        tx_bytes += len(tx.blob_versioned_hashes) * BYTES_PER_BLOB

    return tx_bytes

Note: The full RLP-encoded transaction (signature, nonce, gas fields, and calldata) is packed into payload blobs. The tx envelope overhead (~100-200 bytes per tx) is real DA.

Block-level enforcement becomes a single check:

# One unified check (replaces separate gas + blob_gas checks)
if data_bytes(tx) > MAX_DATA_BYTES - block.data_bytes_used:
    invalid("data limit exceeded")

No more additive worst case. A block can have 28 blobs worth of data, whether that’s 28 type-3 blobs, 28 blobs of encoded transactions, or any mix.

separating execution from DA

Calldata currently pays execution gas that implicitly covers both computation and data availability. With unified data gas, we cleanly separate these concerns:

def intrinsic_cost(tx):
    # Execution gas: pure compute (no calldata costs!)
    exec_gas = TX_BASE_COST + access_list_cost + create_cost + auth_cost

    # Data bytes: full tx + blob sidecars
    data = len(rlp_encode(tx))
    if tx.blob_versioned_hashes:
        data += len(tx.blob_versioned_hashes) * BYTES_PER_BLOB

    return exec_gas, data

Notice what’s missing: no calldata gas costs, no EIP-7623 floor.

why the calldata floor becomes unnecessary

EIP-7623 introduced a calldata floor to prevent large blocks from calldata that come with no execution, ensuring calldata-heavy transactions can’t underpay for the bandwidth burden they impose, while not consuming any other resource. But in a unified data fee market, this protection comes for free:

Concern EIP-7623 Solution Unified Data Gas Solution
Spam prevention Floor gas cost (10/40 per byte) Data fee market (rising data_base_fee)
Price signal Implicit in execution gas Explicit data_base_fee per byte
Adaptivity Fixed floor Dynamic (EIP-1559-style adjustments)

If someone tries to fill blocks with calldata, data_base_fee rises, just like base_fee_per_gas rises when blocks are full. The market handles spam prevention automatically.

The cleaner model:

  • Execution gas = pure compute (TX_BASE_COST + access lists + auth + create + opcodes during execution)
  • Data bytes = all DA (full encoded transaction bytes + blob sidecar bytes)

No double-counting. No floor. One fee for compute, one fee for data.

eip-1559, but for data

Just as blob gas has its own EIP-1559-style fee market, unified data bytes would too:

# EIP-1559-style pricing for data (same mechanism as blob gas today)
data_base_fee = fake_exponential(MIN_DATA_PRICE, excess_data_bytes, UPDATE_FRACTION)

# Excess tracking (same as blob gas)
excess = max(0, parent.excess_data_bytes + parent.data_bytes_used - TARGET_DATA_BYTES)

A new transaction type introduces an explicit data fee cap, giving users finer-grained control over how much they are willing to pay for data:

# New transaction type fields (similar to type-3 for blobs)
tx.max_fee_per_data_byte   # explicit data fee cap
tx.blob_versioned_hashes   # for blob sidecars

The full validation flow looks like the following:

def validate(tx, block):
    exec_gas, data = intrinsic_cost(tx)

    if has_explicit_data_fee(tx):
      # New tx type: explicit per-dimension caps
      max_cost = tx.gas * tx.max_fee_per_gas + data * tx.max_fee_per_data_byte
      assert tx.max_fee_per_data_byte >= data_base_fee
    else:
      # Legacy: single aggregate budget (EIP-7999 style)
      max_cost = get_max_fee(tx)  # gas_price × gas_limit
      required = exec_gas * base_fee_per_gas + data * data_base_fee
      assert required <= max_cost

    assert exec_gas <= tx.gas
    assert data <= MAX_DATA_BYTES - block.data_bytes_used
    assert sender.balance >= max_cost + tx.value

backwards compatibility

The max_fee_per_data_byte field is introduced in a new transaction type. But existing transactions remain fully compatible via gas limit partitioning (see EIP-7999 for details):

def partition_gas_limit(tx):
    if has_explicit_data_fee(tx):  # new tx type
        return tx.gas, data_bytes(tx)
    else:  # legacy types
        calldata_tokens = zero_bytes + 4 * non_zero_bytes
        execution_gas = tx.gas - STANDARD_TOKEN_COST * calldata_tokens
        return execution_gas, data_bytes(tx)

The key insight: legacy transactions’ gas_price × gas_limit already provides a total budget. This budget now covers both execution gas and data gas: the calldata cost simply moves from one dimension to another. No extra funds required.

header changes

The block header tracks data usage instead of blob gas:

# Replace these fields:
blob_gas_used       →  data_bytes_used      # total DA in this block
excess_blob_gas     →  excess_data_bytes    # for EIP-1559 pricing

A first draft of the Unified Data Gas specification is available here.

two orthogonal proposals

Here’s the key insight: BiB and Unified Data Gas solve different problems.

BiB Unified Data Gas
Problem solved How to make calldata DA-sampleable How to bound total DA requirements
Mechanism Encoding (transactions → blobs) Accounting (one limit for all data)
Layer affected CL (blob sidecars, commitments) EL (gas metering, intrinsic costs)
Can exist alone? Yes Yes

BiB without unified data gas still works: you just accept the additive worst case or introduce ad-hoc limits. This isn’t different to how the protocol works today.
Unified data gas without BiB also works: it bounds total data but doesn’t enable DAS for transactions.

Together, they’re synergistic: BiB provides the encoding, unified data gas provides the accounting.

5 Likes
2

I found the object-by-object reasoning very helpful. What I’m especially curious about is whether there’s a more general placement principle behind it, since the local rationales seem to pull in different directions: e.g., BALs are execution-derived yet still need explicit availability, withdrawals are CL-derived, requests are reconstructible but consensus-relevant, and some values like slot-related metadata get pushed into the header partly for proving ergonomics.

Is there a deeper rule you have in mind for what should live in blobs vs the bid/header vs what should simply remain reconstructible, or do you expect this to stay a case-by-case judgment as the zk-attester architecture matures?

3

Yeah, good question, I’ve asked myself the same.

It’s not fully clear to me yet, but I think we need to be careful not to over-couple things too early.

In particular, I’m not convinced we should commingle BALs with transactions at the encoding layer. BALs serve a different purpose than the data: they’re useful for nodes that want to maintain state (e.g. RPCs, inclusion list builders, or zk-attesters that track mempool/state dynamics). This suggests different consumers and potentially different access patterns.

For zk-attesters specifically, I can see multiple modes emerging:

  • some might just DAS everything and not care about structure,
  • others might only want the “pure data” (=txs bytes),
  • others might want the BAL with its state diff to maintain (a partial) state.

Given that, a one-size-fits-all encoding feels premature. It might make more sense to reason case-by-case about which roles we actually want in the protocol (validators, zk-attesters of different kinds, builders, RPCs, etc.), and then design it to cleanly support those, rather than forcing everything into a single blob layout upfront.

4

Forcing a one-size-fits-all encoding does feel premature at this stage. The missing abstraction might actually be relatively straightforward: same availability substrate, different public objects. Tx bytes, BALs, and other data could share the same DA guarantees without necessarily being collapsed onto a single encoding surface.

The separation itself isn’t the problem — the question is what governs which objects land where. The risk with a purely case-by-case placement rule is that it tends to optimize for whoever is easiest to satisfy first. Which is why I think there’s value in anchoring around a stronger invariant: any object whose withholding would materially narrow the set of parties able to independently reconstruct and continue the chain should remain explicitly available — even after consensus no longer requires it directly. Otherwise, you end up with something efficiently attestable but increasingly opaque as public infrastructure.

5

Neat research direction!

Is it correct that if unified data gas is in place, there’s no longer any economic interest in issuing type-3 transactions as opposed to type-5? The pricing seems to be the same, or maybe a bit worse given BYTES_PER_BLOB.

In this case, we wouldn’t fold blob gas into data gas since data gas isn’t DAS’d, right?
