Capping Transaction Gas: Data, Impact, and Rationale

Nero_eth · July 14, 2025, 12:08pm

Capping Transaction Gas: Data, Impact, and Rationale

Find the full analysis here.

TL;DR:

Impact of introducing a cap at ~16.7m is highly concentrated among a small number of sophisticated users/apps
Economic impact is minimal (max individual cost for user < 0.27 ETH over 6 months)
The gas cap would improve DoS resistance and parallelization potential without significant disruption

Ethereum currently permits a single transaction to consume the entire block gas limit. This flexibility, while useful, poses risks: it worsens DoS potential, strains client implementation, and constrains advances in parallelization.

EIP-7987 proposes a simple fix: a hard cap of 16,777,216 gas (2²⁴) per transaction. This post summarizes a six-month study of 252 million mainnet transactions to assess its impact.

The cap is now part of EIP-7825 and was merged in this PR.

The Case for a Cap

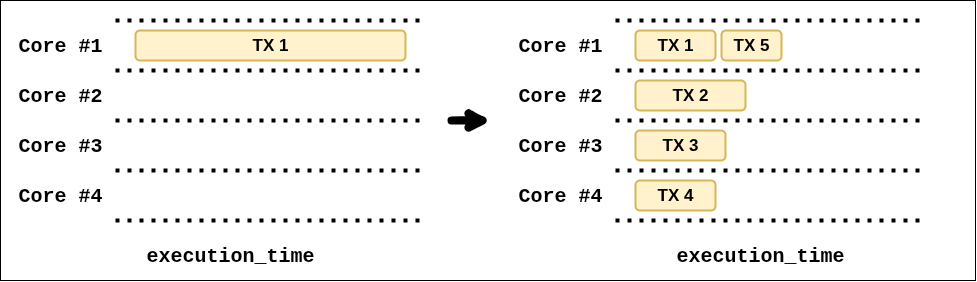

Nodes benefit from bounded transaction cost. Currently, a single transaction can consume 100% of block gas, constraining parallel block validation and distributed block proving.
The introduction of a per-transaction cap removes these worst-case scenarios without changing block-level flexibility.

Measuring Impact

To evaluate the effect of the proposed transaction size limit, we analyzed 1.3 million blocks, spanning more than 251 million transactions. This rather large-scale dataset allows us to assess how many transactions would be impacted, who is sending them, and what the cost implications would be under the new conditions.

The Xatu dataset was used for this analysis.

You can find the code and data in this GitHub repository.

Concentrated Impact

Over six months, only 96,577 of 251,922,669 transactions (0.0383%) would have exceeded the proposed limit. These came from 4,601 addresses, most of which sent only a small number of such large transactions, and went to 983 unique recipients. 1,846 senders (40.1%) only had a single transaction impacted.

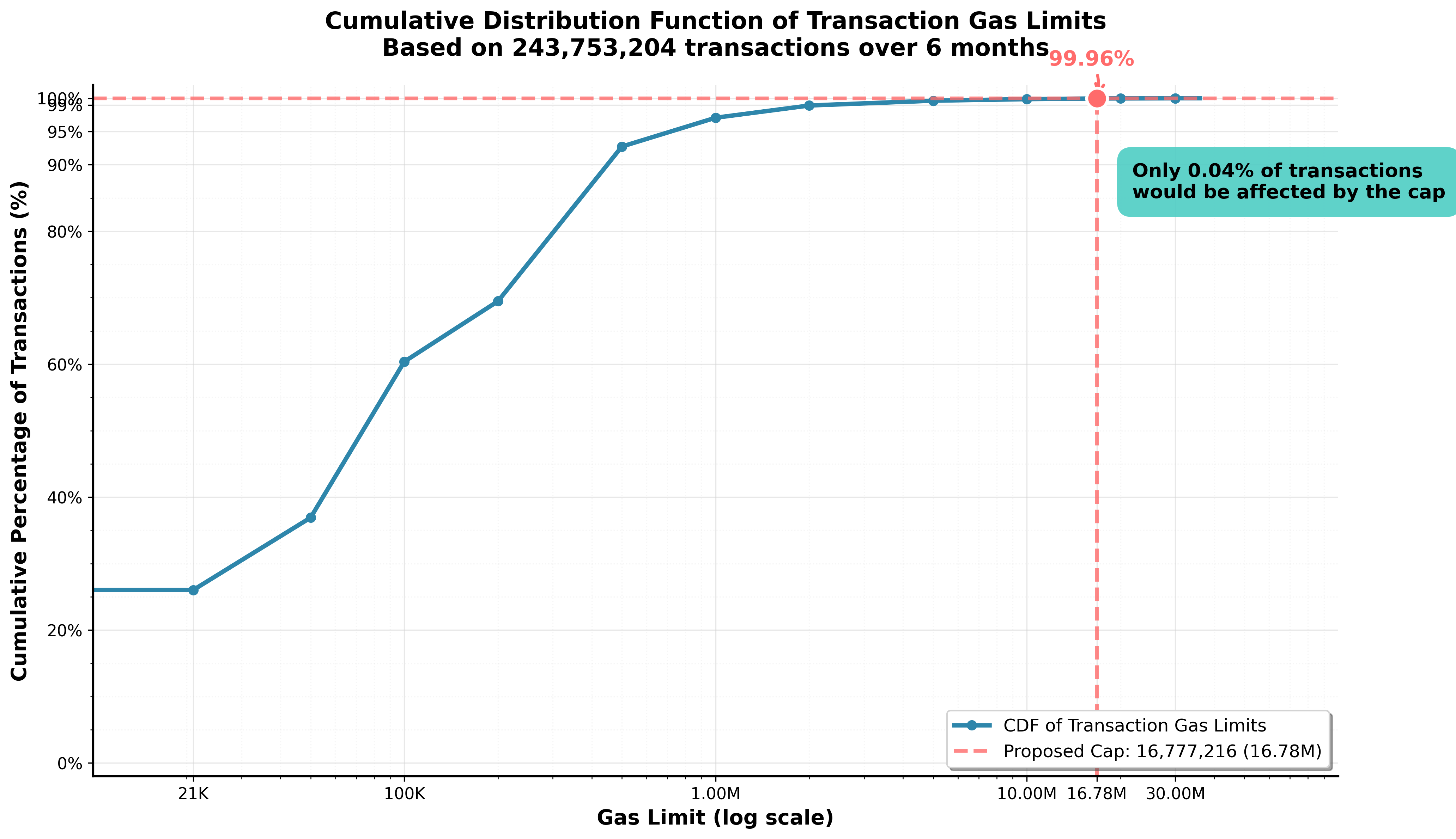

Only 0.038% of transactions exceed 16,777,216 gas — 99.96% are unaffected.

There are five times more unique senders than unique recipients among transactions exceeding 16.77 million gas.
→ This points towards some contracts being used by multiple accounts.

Taking a closer look at the involved entities of the top 10 recipient addresses of >16.77m transactions, we stumble across many XEN contracts:

To Address	Entity Name	Transaction Count	% of >16.77m Transactions
0x0de…628	XEN Minter	31406	32.6
0x0a2…a59	XEN Crypto Token	26048	27.0
0x000…20b	XEN Batch Mint	10110	10.5
0x2f8…479	XEN Batch Minter #2	6688	6.9
0x332…c49	Banana Gun Router	1994	2.1
0x0a9…eba	XEN Custom Contract	1345	1.4
0xc3c…26f	XEN Minter	1302	1.4
0x404…c73	Batch Contract Creator	1130	1.2
0xbd8…3d5	XEN Minter Contract	924	1.0
0x4f4…6a5	Axelar Batch	906	0.9

Find a longer list here.

A small number of contracts dominate the affected set. The top 10 recipient addresses account for 84.9% of impacted transactions, with just two XEN-related contracts responsible for nearly 60%. This confirms the impact is highly concentrated in a few batching-heavy apps.

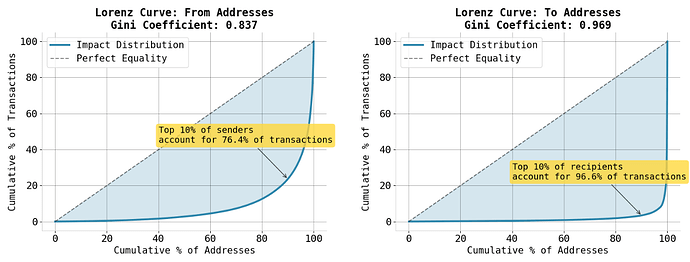

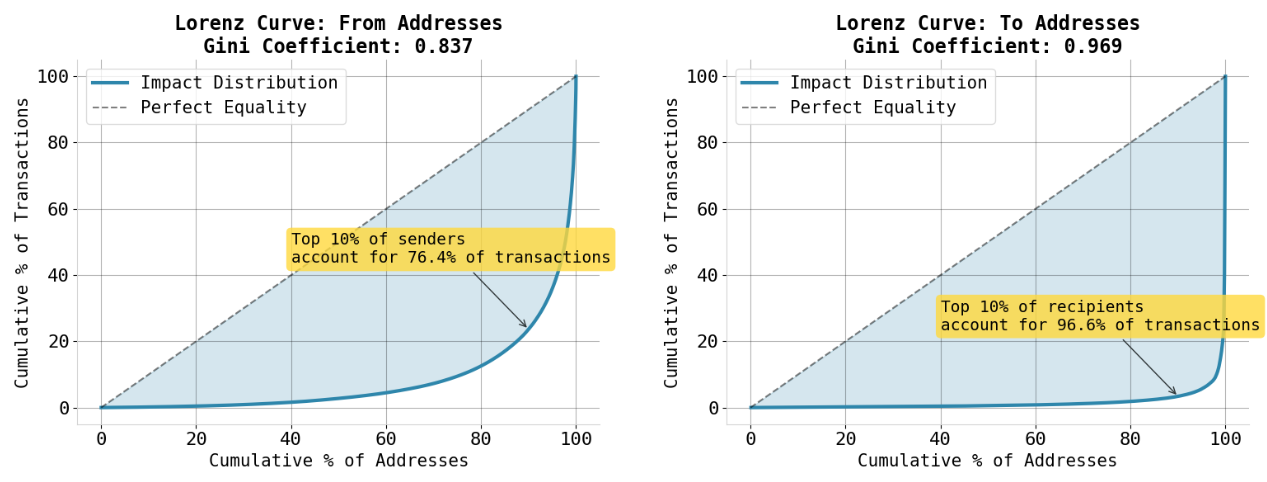

While sender concentration is also high, the Lorenz curve for recipients deviates even further from the dashed line of perfect equality, highlighting a sharper skew.

Looking at the potentially most affected transaction senders, we see XEN users being affected the most.

From Address	Entity Name	Transaction Count	% of >16.77m Transactions
0x22d…3e1	MCT: MXENFT Token User	2555	2.6
0xc87…e85	wywy.eth	2205	2.3
0x78e…ffe	XEN User #1	1712	1.8
0x2a8…41c	XEN User #2	1559	1.6
0xcde…6ff	XEN User #3	1543	1.6
0x61f…c6f	aifi2025.eth	1345	1.4
0x4ab…f32	liudaoyyds.eth	1287	1.3
0xd6a…e77	XEN User #4	1189	1.2
0x734…678	XEN User #5	1100	1.1
0xb5b…8d9	XEN User #6	1089	1.1

Find a longer list here.

For the XEN user 0x22d…3e1 this would mean paying at least 2,555 * 21,000 additional gas. Assuming an ETH price of $2500 and a base fee of 5 GWEI, this would result in $670 fees in addition.

Economic Costs over 6 Months

Some transactions, especially those that batch many independent actions, will have to be split apart. This comes with additional gas costs in the form of 21,000 gas base costs and other costs such as state warming.

The latter can be solved through something like block-level warming.

Regarding the additional 21,000 gas, assuming a 5 GWEI base fee and 2,500 USD/ETH, over 6 months:

Total additional gas required if capped: ~2.1B gas
Total economic impact: 10.5 ETH (~$26,250)
Median per-address cost: 0.000017 ETH (~$0.04)
Maximum observed per-address cost: 0.00105 ETH (~$2.63)

The average impacted sender would have had to pay 21,000 more gas, equaling 0.10 USD at a base fee of 2 GWEI.

Efficiency Gaps

Some transactions could have stayed below the 2**24 limit but specified a too-high gas limit: 19.2% of transactions that would have been affected by the cap did not actually need more than 2^24 gas. Average gas efficiency among those transactions was only 71.4% (i.e., they used just 71.4% of the gas they specified), with the rest overprovisioned.

What about unknown unknowns?

Some contracts expose functions whose gas usage scales with system growth: an anti-pattern. For example, a function that loops over n accounts to empty them, while allowing anyone to increase n, can become a ticking time bomb. Even without a per-transaction gas cap, such designs are risky if not carefully constrained.

Convex Finance illustrates this. Its shutdownSystem function iterates over all deployed pools and withdraws funds. Initial simulations by Matt Solomon showed gas usage exceeding 20 million. The more pools that are deployed, the more expensive the shutdown gets. Fortunately, each pool can also be closed by its manager, not just the contract owner.

This might not be an isolated case: potentially more contracts include rarely/never used “emergency” code paths that could fail or become unaffordable if ever triggered at scale.

You can find the full analysis and code here.

CPerezz · July 15, 2025, 10:09am

This is super interesting. Thanks for such a detailed report and investigation!

I agree on the part that this is almost a “free parallelization enabler”. Which ofc comes in handy for proposals like parallel execution (which was also explored in Execution Dependencies).

I have some questions about the study and proposal.

The EIP doesn’t really specify well why 2^24. Could this be more? or less? Also, why specifically this value and not another? Does it come from data? Or data comes from the number? Have you considered other values and if so, why?
Do you see this as a Glamsterdam proposal? Seems low-cost/effort and with huge upsides and minimal affected contracts.
Do you think it makes sense to expand the study to the last year or until pre-merge? Do you expect things will change much? (I’d say no, but curious on your take on why you studied the specific period you did).
As per DOS-prevention, this would only prevent ammortizing the 21k gas of the tx across lots of actions. But aside from that, what’s the DOS prevention here? Users (without ammortizing the 21k gas) can still submit up to gas_limit consumption split in different txs. I’m not sure I fully understand the DOS point. Specially since users pay for gas anyways.

Nero_eth · July 15, 2025, 1:54pm

Thanks for the feedback and questions!

On the 2^24 value:
The choice of 2^24 (≈16 million) strikes a balance between enabling meaningful parallelization opportunities while keeping the range small and clean, being a power of two makes certain implementations simpler and avoids odd edge cases.

On the data window:
I did look at two full years, but narrowed the analysis to the most recent 6 months, since that better reflects today’s network conditions—especially with respect to gas limits, blob and calldata usage, and prevalent transaction patterns. That said, I’ve now added a short 2-year report for broader context. One surprising observation: even more transactions allocate large amounts of gas but end up using little.

On Glamsterdam inclusion:
Yes, I think it’s a good candidate for Glamsterdam, altough it’s already on devnet 3 and might just get into Fusaka. The change is relatively low-effort from the technical side and the upside is significant in terms of enabling future scalability work (like parallel execution).

On DoS prevention:
Great point. You’re right that users still pay for gas, so the typical economic DoS protection applies. The angle I had in mind was more about quadratic-cost attacks within a single transaction, some patterns can get much worse when batched into one large tx rather than split across many.
