SEACAST: fast, lean broadcast for Ethereum, with an executable spec and a formal model

cskiraly · October 21, 2026, 3:48pm

This post follows Informed Diffusion: making home builders publish fast (2026).

TL;DR

Ethereum has more and more large objects to broadcast, and little time for each. Today’s payloads are small and datacenters carry them, which is much of why mainnet is in time, but payloads grow with the gas limit, and execution proofs and consensus blocks with post-quantum signatures may join them. No broadcast can deliver such an object faster than its source’s uplink lets it out, or with fewer than one copy per node, and today’s gossip sits far from both limits: every node waits for the whole object before passing it on, and receives several copies of it. From a builder at home, the last nodes receive a 1 MiB payload seconds late.
Not every node needs every byte. With data-availability sampling, a node is to receive its samples of an object, not the object. A broadcast that knows only “the whole object to every subscriber” either sends too much or needs a topic per piece, as PeerDAS’s 128 column topics do.
SEACAST (Segmented, Encoded, Availability-sampled broadCAST) is a broadcast protocol for both. It builds on the principles of Informed Diffusion, the protocol of our earlier post: chunks that nodes forward at once, coded so that no chunk is the last one, and nodes that tell each other what they hold. To these it adds sampling, from our FullDAS design: what a node wants, the whole object or a sample of it, is part of the protocol.
It is elastic. As every node’s uplink is cut from 50 to 10 Mbps, its delay stays between 2.2 and 2.5 times a lower bound the links set, and its bytes stay at about 1.7 copies per node, control included; today’s gossip, on thin links, runs away from the bound and sends more.
It has an executable specification, which none of the protocols it is compared with has. The pseudocode runs as written in a small simulator, and an earlier version of the text was checked rule by rule against the implementation the numbers come from.
It has a formal model. A formal model of the specification checks its safety rules and found ten gaps in delivery, promise handling and expiry; version 0.5 already fixed eight of them. The model is published with the specification.
It is measured, against today’s gossip and against ECBroadcast. Every tier was measured in our earlier posts, with faulty nodes and thin links, and the earlier design again in a second simulator. In one simulator, on the same links and graph, at 16 connections per node, it is faster and lighter than both today’s gossipsub and ECBroadcast’s Reed–Solomon mode on all ten simulated networks of each kind: on a network of home nodes, 99 % of the nodes hold a 1 MiB payload after 0.64 s, against 0.97 s with ECBroadcast and 4.5 s with gossipsub, for about a third of either one’s bytes; with a datacenter builder, 0.45 s against 0.58 s and 1.6 s, for three fifths of ECBroadcast’s bytes and under half of gossipsub’s.

1. The name, and where it comes from

Informed Diffusion was a description that served as a name: every node learns what its peers hold and sends accordingly. The protocol now does more than the earlier post described, and others are to implement, compare and cite it, so it gets a name of its own, SEACAST:

Segmented: an object travels as chunks, and a node forwards each chunk as it arrives, before it holds the whole.
Encoded: the chunks are coded, so that a node needs enough of them, not particular ones. The code is Reed–Solomon today and may change; the E could as well read Elastic, the protocol’s delay and bytes following the bandwidth it is given, as §4 shows.
Availability-sampled: a node may want a sample of an object rather than the whole, the columns its custody assigns or the cells it samples, and the protocol delivers what each node wants. Every chunk carries its own proof, so a sample is checked on its own.
broadCAST: from one source to every node that wants the object, or a part of it.

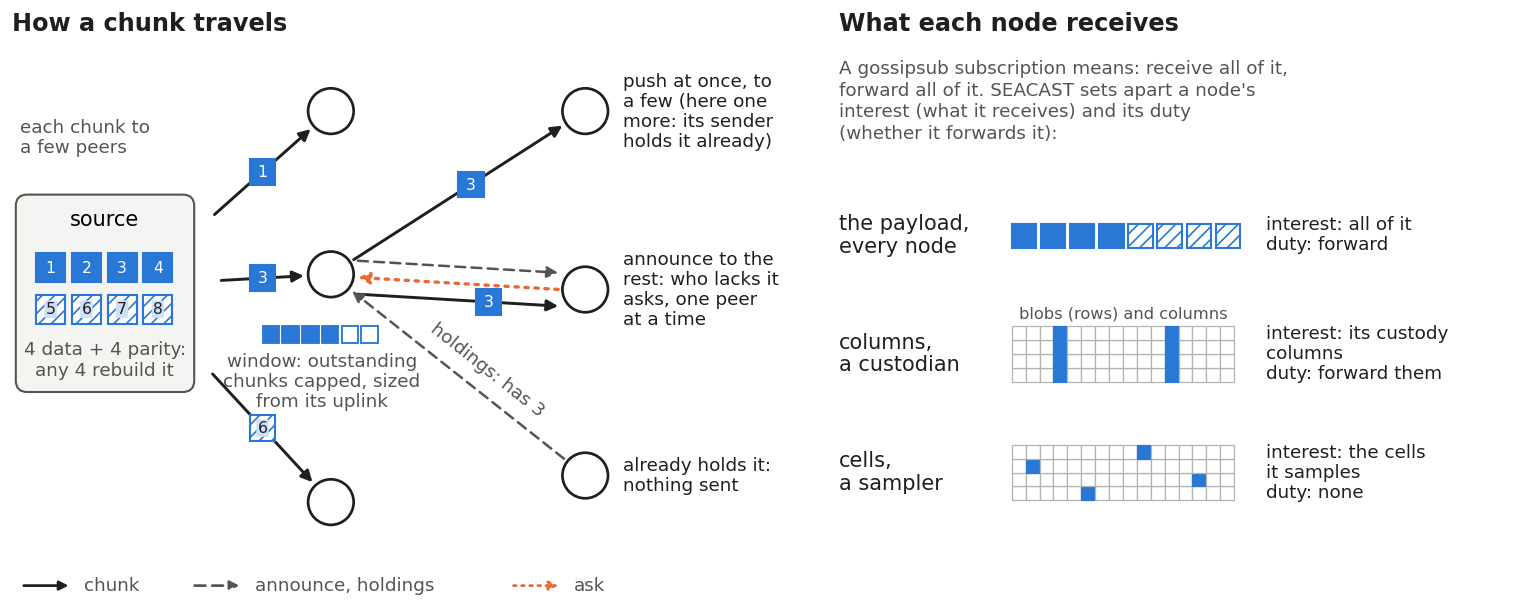

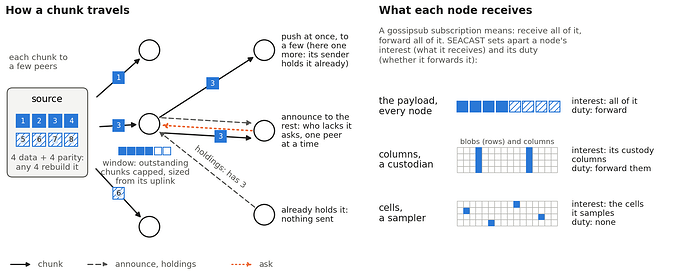

Figure 1: SEACAST in one picture. Left, how a chunk travels: the source sends each chunk to a few peers; a node forwards a chunk as soon as it arrives, pushing it to a few peers (here one more, since the peer it came from already holds it) and announcing it to the rest; a peer that lacks the chunk asks for it, one peer at a time; a peer whose holdings show it already has it gets nothing; and a window sized from the node’s uplink caps its outstanding chunks. Any 4 of the 8 coded chunks rebuild the object. Right, what each node receives: a node’s interest (all of an object, its custody columns, or the cells it samples) is set apart from its duty to forward, as the draft of the next version writes it.

Informed Diffusion remains the name of how SEACAST diffuses, and the earlier post keeps its title. One earlier protocol shares the name: SEACAST, a peer-to-peer video streaming protocol with multiple description coding (Zezza, Magli, Olmo and Grangetto, IEEE ICME 2009). Ours is unrelated to it. Nor is SEACAST EIP-8411 at 41ba25cc, which specifies a smaller protocol, close to SEACAST’s first tier.

Most of SEACAST’s mechanisms are not new on their own; they come from decades of work on distributing content over peer-to-peer networks. Forwarding chunks before the whole is held, and scheduling which chunk goes to which peer, is what P2P live streaming did in the 2000s (SplitStream, Castro et al., SOSP 2003; CoolStreaming, Zhang et al., INFOCOM 2005; PULSE, Pianese et al., 2007), with its trade-offs worked out in theory (Bonald et al., SIGMETRICS 2008; Abeni, Kiraly and Lo Cigno, NETWORKING 2009). Coding the content so that no piece is the last comes from erasure codes for networking and digital fountains (Rizzo, CCR 1997; Byers et al., SIGCOMM 1998). Push and pull have epidemic roots (Demers et al., PODC 1987; Karp et al., FOCS 2000); pushing data eagerly on some links and announcing it lazily on the others is Plumtree’s split (Leitão et al., SRDS 2007), which gossipsub’s mesh and gossip follow. Telling peers what one holds is BitTorrent’s bitfield (Cohen, 2003) and CoolStreaming’s buffer map (Zhang et al., 2005), and sizing what is in flight to the uplink is rate control for P2P streaming (Birke et al., P2P 2011). Delivering each node its samples rather than the whole object, sampled diffusion, comes from our FullDAS design (Kiraly et al., 2024), which built on data-availability sampling (Al-Bassam, Sonnino and Buterin, 2018) and also proposed holding bitmaps for gossipsub. The earlier post’s broadcast was its special case, every node wanting the whole object; SEACAST is the one protocol for both that the earlier post promised. For a few of the fourth tier’s rules we have found no earlier source: a push budget of two; projection, which skips a push to a peer that will reach enough chunks without it; paced gossip, which releases the heartbeat’s announcements one peer at a time; and a push budget set by the node’s uplink. What is new above all is the combination, fitted to Ethereum’s constraints: one source, often at home; a deadline within the slot; nodes that may lie or withhold; a proof on every chunk; and sampling. Segmented payload diffusion, card by card cites the literature behind each mechanism.

2. What it carries

Ethereum has several large objects that one node must get to many, fast: the execution payload, which the earlier post measured at 1 MiB, about three quarters of that once compressed; the data-availability columns and rows of blobs; and, as they come, execution proofs that travel with the block and consensus blocks with post-quantum signatures. Their sizes and deadlines differ, and so does who needs what: every node needs the whole payload, but a node needs only the columns its custody assigns, or the cells it samples.

SEACAST’s next version, in its draft, separates the questions a gossipsub topic answers all at once. A node’s interest is what it wants: the whole object, the columns its node id assigns, or the cells it declares. Its duty is whether it forwards what it receives. Its relations say to whom it pushes and to whom it announces. A subscription bundles all four into one; kept apart, they let a node forward only what it is to forward, and let a sampler receive its samples without joining a topic per column.

SEACAST is not bound to gossipsub. It is defined on its own messages (holdings, a node’s bitmap of the chunks it has; asks; chunks), and a binding maps them onto a transport. The next version’s draft writes out three: SEACAST as a libp2p protocol of its own; SEACAST onto gossipsub, through gossipsub’s Partial Messages extension, which keeps a rollout inside the existing topics; and the wire of the research implementation, a modified gossipsub. Another transport needs only another binding.

What is shown, and how. Times below run until a node holds enough chunks to rebuild the object; checking the chunks’ proofs, waiting for the block and decoding are outside them.

Payloads, measured in the earlier post: on a network where every node is at home (50 Mbps up, 100 down), a 1 MiB payload reaches 99 % of the nodes in about 0.6 s, against 6.3 s for today’s gossip, and each node receives 1.7 copies of it instead of 4.4, control included.
Data-availability columns, measured on a stand-in: the same mechanisms, given an object type shaped like PeerDAS’s columns in our simulator, deliver each node the eight columns its custody assigns, and forward nothing else. With a 1 Gbps source and every other node at home, 99 % of the nodes hold their columns about 0.7 s after the source publishes, and the median node receives about 1.3 copies of its columns’ data (Figure 2). This is a proxy in our simulator, with checking a cell taken as free, not PeerDAS.
Sampling, rows and other object types, in a draft of SEACAST’s next version, published with this post: the object type is an interface the consensus side supplies (its indices, the chunks it needs, how a chunk is checked and decoded), and execution payloads, PeerDAS columns and RowDAS rows (EIP-8371) are written out; blobs travel as columns and rows. Its simulator runs payloads, custody, rows and sampling; with half of the columns withheld, the custody and row settings still complete, through supernodes that rebuild or through the custodian links a row member needs. No client or full simulation runs it yet, and its open decisions are listed in it.

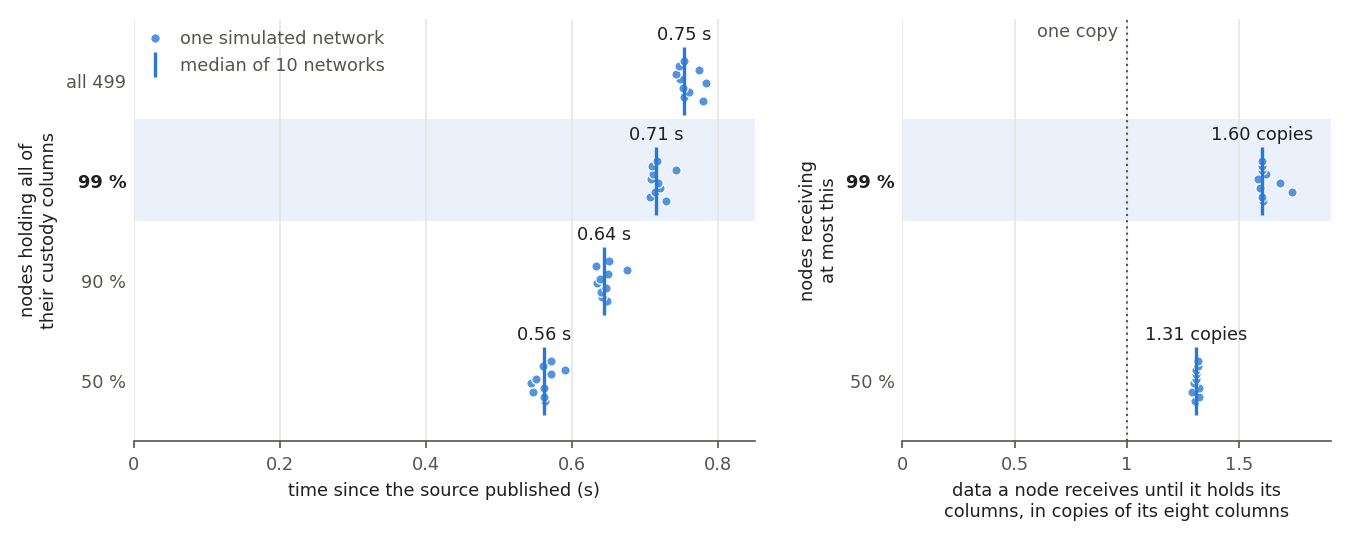

Figure 2: the column proxy: SEACAST’s measured version carrying an object shaped like PeerDAS’s columns in our simulator (a block of 32 blobs as 128 columns of 32 cells, each node taking the eight columns its custody assigns), with checking a cell taken as free; not PeerDAS. 500 nodes, a 1 Gbps source and every other node at home (50 Mbps up, 100 down), ten simulated networks. Each small point is one network, the average of the two blocks after the first; each bar is the median over the networks. Left, the time after the source publishes by which half, 90 %, 99 % and all of the 499 other nodes hold all of their columns; right, the data a node receives until then, in copies of its columns, for the median node and at the 99th percentile.

3. How it compares

The comparisons below rest on a larger body of simulation: the real Prysm and gossipsub code on a virtual clock, each result named here the median over ten simulated networks. EIP-8411: what segmented payload diffusion is made of (2026) built the first three tiers (chunks forwarded at once; announcements and asks in place of blind pushes; the code) one rule at a time, across payload sizes, thin links, datacenter nodes and withholding. Informed Diffusion: making home builders publish fast (2026) and its companion, Informed Diffusion, measured (2026), added the fourth tier and ran it through lost data, an omitting source, uneven links, every kind of faulty node we modelled up to half of the network, and uplinks thinned to 10 Mbps: every node received every payload after the first within three seconds. EIP-8411 payload segmentation under the Shadow simulator (2026) reran that post’s main comparison in a second simulator, over QUIC and TCP, and on the Linux kernel’s stack; under Shadow, the design it recommended came within 6 % of the first simulator. What is not yet shown: the fourth tier has run only in the first simulator, on networks of up to 500 nodes and payloads of up to 2 MiB.

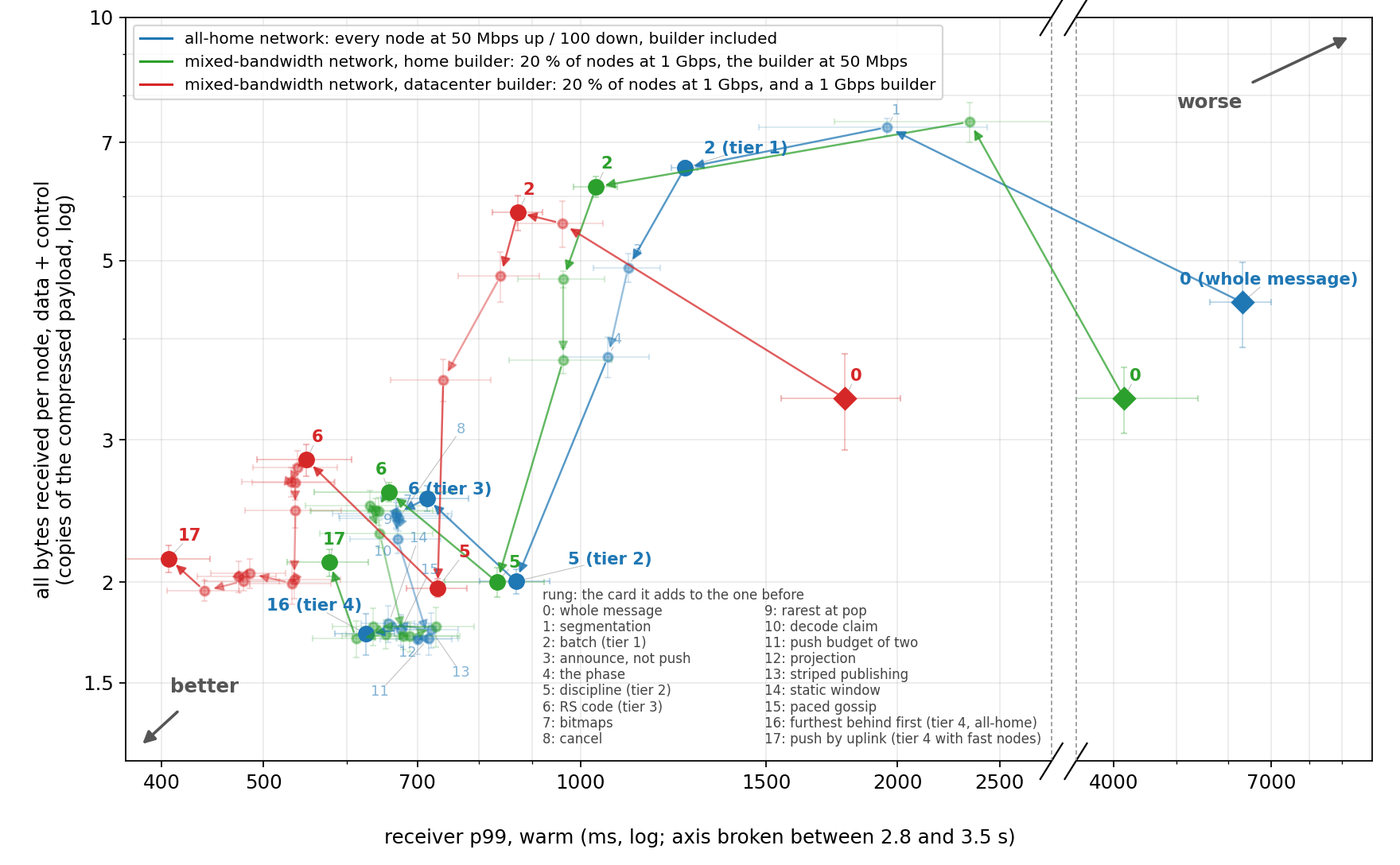

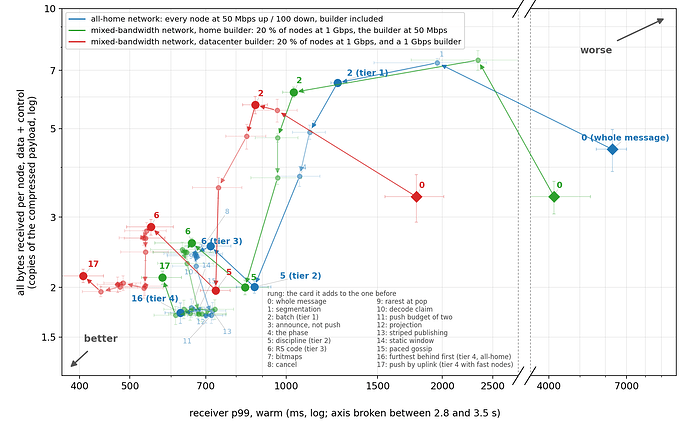

Figure 3, from the earlier post (its Figure 1, where every point is explained): the measured design built up one mechanism at a time, from today’s gossip (0) to the fourth tier (16, and 17 with fast nodes), in the all-home network and in the mixed-bandwidth network with a home or a datacenter builder, at about 70 connections per node. Across, the time for 99 % of the nodes (ms, log scale, warm payloads); up, the bytes each node receives, data and control, in copies of the compressed payload (log scale); bars, one standard deviation across the simulated networks; lower left is better.

Broadcast protocols are usually compared across papers, each on its own simulator and link model. We ran three in one: today’s gossipsub, ECBroadcast’s Reed–Solomon mode and SEACAST, on the same links, queues, latencies, graph and payload. ECBroadcast runs on its own engine, unmodified, behind an adapter to libp2p’s streams; only the adapter is ours, and all three run over the same QUIC stack, libp2p’s, inside the simulator.

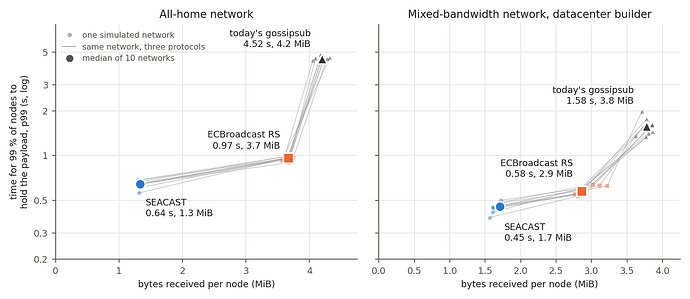

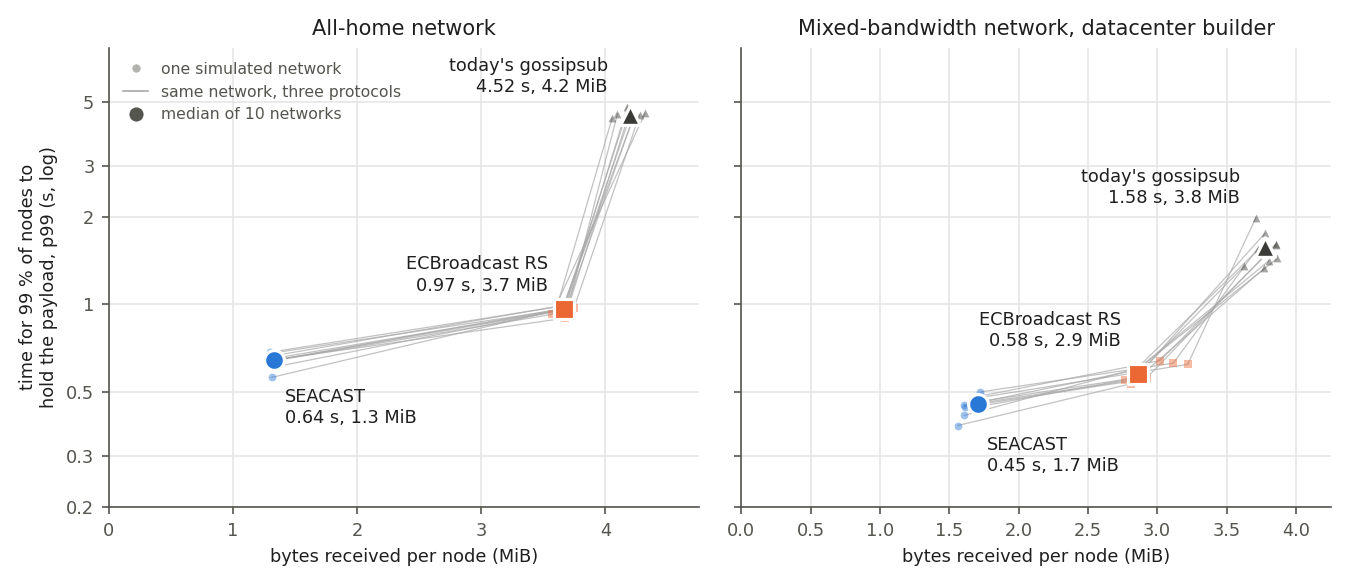

Figure 4: today’s gossipsub, ECBroadcast’s Reed–Solomon mode and SEACAST in one simulator: 500 nodes with 16 connections each, a 1 MiB payload, ten simulated networks per panel. The all-home network has every node at 50 Mbps up and 100 down; the mixed-bandwidth network has a fifth of the nodes at 1 Gbps, the builder among them. Each small point is one protocol on one network, the median over the five payloads after the first; a grey line joins the three protocols on the same network; the large markers are the medians over the networks. Time (on a log scale) is until 99 % of the nodes hold enough chunks to rebuild the payload, or, for gossipsub, the whole payload; bytes are what a node receives on the wire on average until the last node completes, QUIC headers and control included, a little more than the copies counted elsewhere in this post.

Against today’s gossipsub, with 16 connections per node: on the all-home network, 99 % of the nodes hold the payload after 0.64 s with SEACAST and 4.5 s with gossipsub, and each node receives 1.3 MiB against 4.2 MiB; with a datacenter builder, 0.45 s against 1.6 s, and 1.7 MiB against 3.8 MiB. SEACAST is faster and lighter on each of the ten networks, on both. The earlier post, at about 70 connections per node, found a wider gap: 0.63 s against 6.3 s on the all-home network, 0.41 s against 1.8 s with a datacenter builder.
Against ECBroadcast’s Reed–Solomon mode, with 16 connections per node: on the all-home network, 99 % of the nodes hold the payload after 0.64 s with SEACAST and 0.97 s with ECBroadcast, and each node receives 1.3 MiB against 3.7 MiB; SEACAST is faster and lighter on each of the ten simulated networks, and the byte ranges do not overlap. With a datacenter builder the gap narrows, 0.45 s against 0.58 s and 1.7 MiB against 2.9 MiB, and SEACAST is again faster and lighter on all ten. Both cut the payload into coded chunks, forward before decoding and exchange bitmaps; the difference is in what enters flight. ECBroadcast’s sessions span every connection: a node sends each chunk to up to four peers whose bitmaps lack it, its source to all, and it cancels sends that a later bitmap makes redundant, and incoming copies of a chunk it has already accepted; in these runs most of its bytes are duplicates that arrive before a cancellation takes effect, and, as we read it, the useful chunks wait behind them. SEACAST pushes to a few peers, announces to the rest and lets each receiver ask for what it lacks, one announcer at a time, under a window sized to the sender’s uplink. The chunk, coding and bitmap settings are ECBroadcast’s benchmark settings; its own benchmarks connect each node to 8 peers, while 16 is the fewest our simulator runs, and the more connections a node has, the more this matters. A sender-side window or sessions on fewer connections would move it toward SEACAST.
Waggle, a libp2p proposal (libp2p/specs#732) for objects reconstructed piece by piece, exchanges pieces with application-defined metadata and uses its view of each peer to decide where pieces go. Its draft leaves byte-level pacing unspecified, and it has no published results; carrying SEACAST’s schedule would mean mapping its asks and its choice of peers onto that interface.

4. Elastic

A protocol for nodes at home must degrade gracefully as links thin: take longer, but in proportion, and spend no more bytes doing so. We ran SEACAST’s measured version on the all-home network with every node’s uplink cut from 50 to 25, 20 and 10 Mbps, at about 70 connections per node as in the earlier post, ten simulated networks at each.

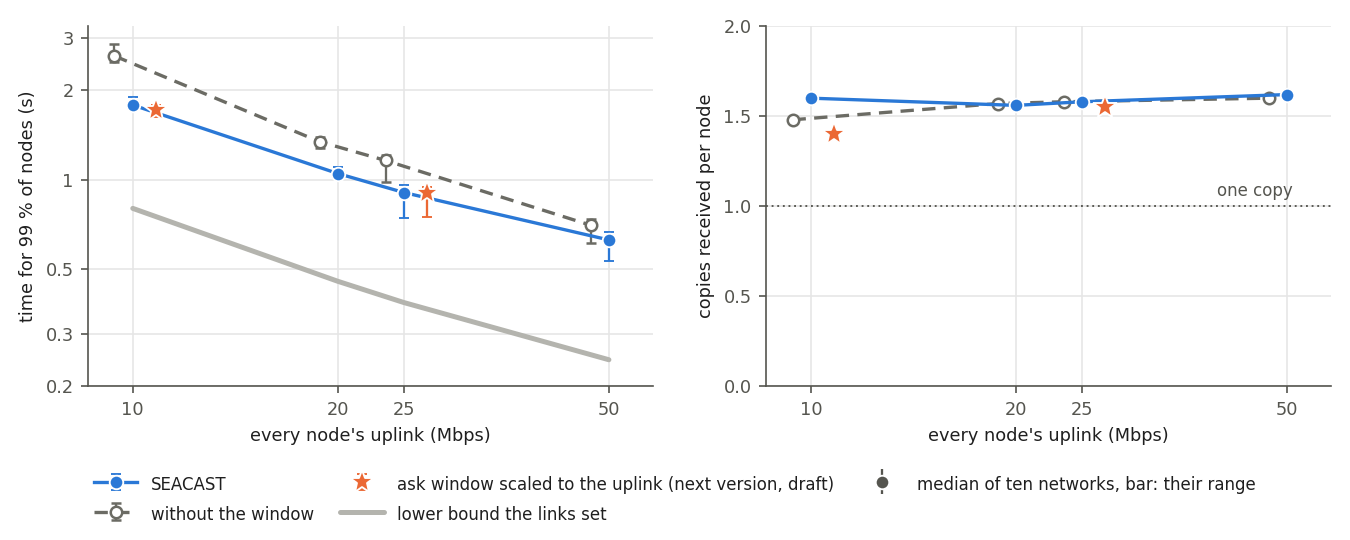

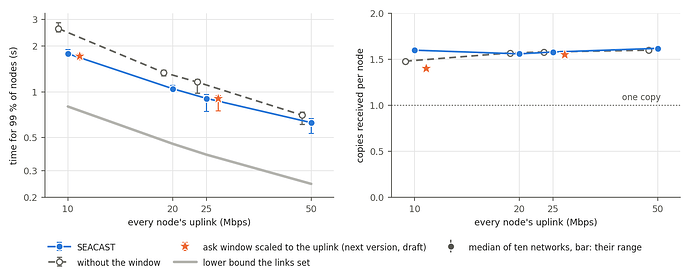

Figure 5: SEACAST as links thin, the all-home network, 500 nodes, a 1 MiB payload, ten simulated networks per point (bars: their range). Left, the time for 99 % of the nodes, against the lower bound the links set; right, the data each node receives, in copies of the compressed payload. “Without the window” also drops a guard on which peers a node pushes to. The 20 and 25 Mbps networks had a 100 Mbps downlink, which does not change the bound. Today’s gossip, an order of magnitude slower on these links, is in the text below. The measured series are set a little apart sideways so their bars do not overlap.

Delay follows the bandwidth. The time for 99 % of the nodes grows from 0.63 s at 50 Mbps to 1.8 s at 10, and stays between 2.2 and 2.5 times a lower bound the links set for chunked delivery: the time for the source to send the payload’s chunks once, for the holders of the last chunk to double at each step, and for it to cross the network. There is no point where it runs away.
The window is what does it. A node keeps in flight only as many chunks as its uplink sends in about 130 ms. In runs without the window (which also dropped the guard on push targets) the tail was 12 % longer at 50 Mbps and nearly half again as long at 10.
Bytes stay put: data at about 1.6 copies per node from 50 Mbps down to 10, and another tenth of a copy in control. They do not grow as links thin, but they do not yet fall either: a node waits a fixed 200 ms for an answer before asking another holder, and on a thin link a slow answer is asked for again and both arrive. The next version’s draft scales that wait with the uplink; at 10 Mbps it is faster and lighter on every one of ten networks, about 5 % off the tail and 0.2 fewer copies per node; at 25 Mbps it changes little.

Today’s gossip goes the other way. In the uplink sweep behind EIP-8411: what segmented payload diffusion is made of (2026), in the same simulator on an earlier build, with ten networks per point and downlinks at twice the uplink, stock gossipsub took 5.9 s at 50 Mbps for 99 % of the nodes, 24 s at 20 and 51 s at 10, medians over the networks (that post’s Figure 4 draws the time for half of the nodes: 5.0, 20 and 43 s), and each node received 4.6, 5.5 and 6.5 copies. Those runs sent one payload per network, on a build that ran the whole message faster than the one behind §2’s 6.3 s; at 20 and 10 Mbps another payload sent twelve seconds later would start before the first reached 99 % of the nodes. Its delay runs further from the bound as links thin, and its bytes grow. As we read it, each node forwards the whole payload to all its mesh peers at once, so the copies share its uplink and each takes longer, and the notice that a peer already has the payload arrives after its copy has started.

5. A specification that runs

Gossipsub’s specification is prose; Ethereum’s networking specification is prose with some helper functions, beside a consensus specification that runs as Python; ECBroadcast has prose specifications and Go code, and Waggle a draft specification and a prototype. In none of them does the text run as the protocol. SEACAST’s specification, Informed Diffusion: the protocol in pseudocode (release v0.6 of the repository, whose protocol text is version 0.5), writes every rule as Python-like code, in the style of the consensus specs, with the wire fields and the constants beside it. A small simulator in the same repository takes the document’s code blocks in order and runs them once per simulated node, so the document is the program: change a rule, and the next run executes the change. It needs nothing but Python:

cd toy
python3 run.py --net home --seed 7     # 500 nodes, all at home, six payloads
python3 check.py                       # the document still behaves as recorded

check.py runs twelve small networks and compares a hash of every event each node processes with a recorded one, so an edit meant to change nothing is seen to change nothing, and one that changes behaviour shows where. The next version’s draft runs in the same simulator.

The simulator is a check of the text, not a measurement; the numbers in this post come from the research implementation (Prysm with a modified gossipsub library) in a simulator of its own. We compared an earlier version of the text with that implementation on the same networks, loading the implementation’s topology into the simulator, counting each rule’s actions on both sides and checking the same invariants (no node past its push budget or its window, no second ask for a chunk while the first is open). Twice it was the implementation, not the text, that was wrong: a stale ask erased a newer holding, and the source sent each mesh peer a holding per chunk, 128 of them, where the text had one. Both were fixed to match the text. Most of what still differs comes from the simulator’s simpler transport, which takes every write at once; some of it is not explained yet: the simulator’s nodes send about a fifth fewer holdings, and with a datacenter builder its tail is shorter.

6. A formal model, checked on small instances

We wrote sections 4 to 7 of the specification, for one object, as a model in Quint, and checked it by random simulation and, translated to TLA+, with the TLC model checker. The model leaves timing free: a link delivers and a timer fires at any moment, so every interleaving is a schedule the checker may pick. The instances are small: three or four nodes and an object of at most two data and two parity chunks, with and without an adversary that forges chunks, withholds them, equivocates or sends an inconsistent code.

Safety. No violation of these was found in the checks that apply to each: random simulation (up to five thousand traces per configuration, twenty thousand where a case is rare), TLC’s search of the three-node triangle (every state at one data chunk, to a bounded depth at two), and, for some, monitors on the simulator’s own runs of the text. The table in formal/ says which check covers which property.

no honest node is penalised by another honest node, and a forged chunk counts only against its forger;
no ask leaves for a chunk the node holds, after it has stopped pulling, or past the object’s lifetime;
a node’s window of chunks in flight keeps its slots and loses no wake-up;
the source’s holdings name only chunks it has sent, apart from each peer’s first chunk just ahead of its push; this removes one certain sign of which node is the source;
once an object is dropped, nothing of it but holdings is sent.

On the smallest instance, the triangle with one data chunk, with a node’s sending of all it can taken as a single step, TLC explored every reachable state (3.3 million) and showed that every run ends with every node complete, under weak fairness. Nobody asks in that instance, and nothing expires or disconnects, so the asking rules rest on the bounded search and the simulation, and the rules for refused copies, closed connections and expiry on the simulation. The wire’s arithmetic (chunk sizes, lengths, proof and bitmap bounds) was checked for every data-chunk count up to 128 and every compressed length in Snappy’s range.

Liveness is where it found problems. The model found ten gaps in delivery, promise handling and expiry. The first was a push the sender skipped but still counted, so that its target was never offered the chunk: a triangle, a ring or a node with one peer never completed. Version 0.5 fixes eight of the ten. Two stay open, with candidate rules: a node that switches from the proposer’s other block to the builder’s block, and a new connection that is never offered what the old one lost. How often the ten bite in a real network is not measured, and the implementation the numbers in this post come from predates the fixes; the specification’s §9 lists what it lacks.

The limits are those of small instances: no exhaustive check at two data chunks has completed, and the model has no heartbeat gossip, no several objects at once and no restarts. The model, its instances, and a table of every property with how it was checked are published with the specification (formal/).
